WEF6
Water cooler

WEF6
Water cooler

WEF6 <br/>Water cooler

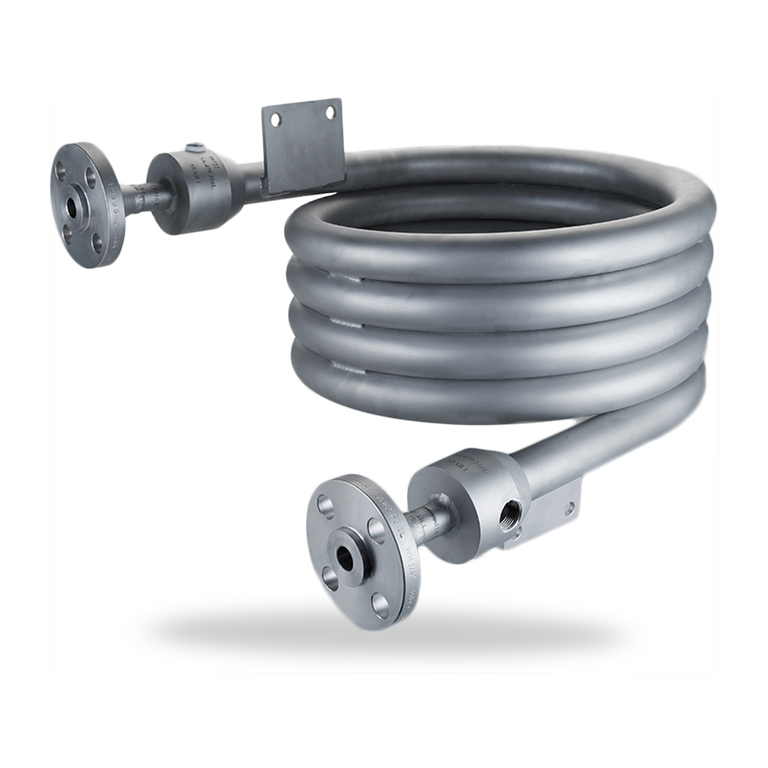

WEF6000A4

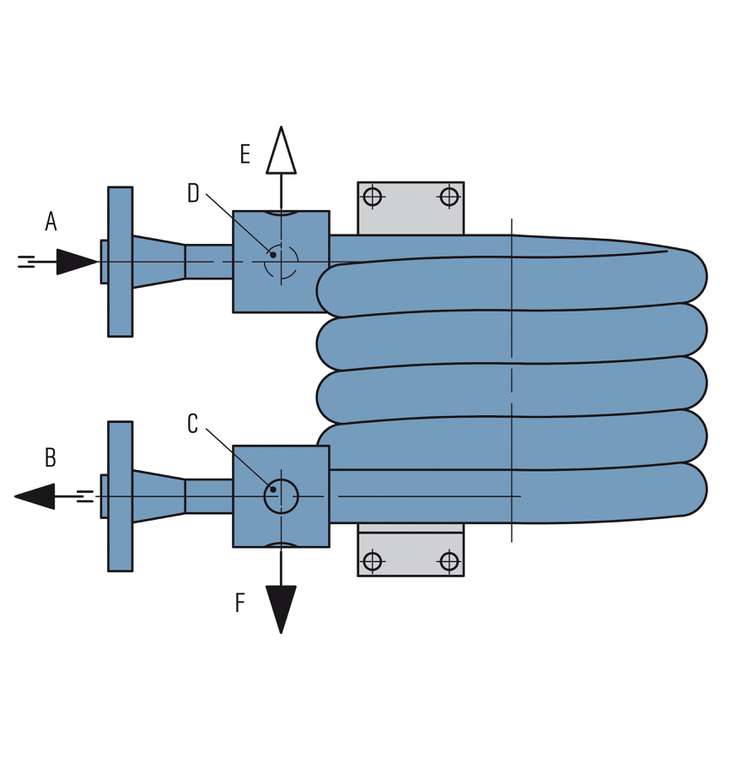

A From mechanical seal
B To mechanical seal
C Cooling water IN
D Cooling water OUT
E Vent
F Drain

WEF6
Water cooler

Features

Heat exchangers of the WEF6 range are used to cool process/barrier fluids in seal supply circuits. WEF6 heat exchangers are fully compliant with API 682 4th edition regulations. The process/barrier medium is directed through the tube, and the cooling medium is directed through the shell.
Venting and draining of the process/barrier medium side as well as the cooling water side is ensured. In addition, the heat exchangers can also be combined with a temperature instrument in the supply line to the mechanical seal (optional in accordance with API 682 4th edition).

Advantages

  • Operating limits up to 65 bar / 260 °C
    (943 PSI / 500 °F) (tube side):
    suitable for a wide range of operations
  • Cooling water and process side can be completely vented and drained
  • Seamless pipes on process side
  • Special design without welding inside the cooler
  • Higher cooling water velocity due to innovative cooler design
  • Stainless steel 316/316L: high resistance to corrosive media

Standards and approvals

  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • ASME VIII, Div. 1 possible (see notes)
  • API 682 4th edition

Notes

Design and production in accordance with EU Pressure Equipment Directive PED 2014/68/EU.
Design, calculation and production acc. to ASME VIII, Div. 1
(cooler not subject to ASME stamp requirements, piping <6")


Cleaning:
Process/barrier medium side and cooling water side: flush with a suitable solvent.

Recommended piping plans




Product variants

Designation WEF6100A4 WEF6101A4 WEF6000A4 WEF6001A4
Design code ASME VIII, Div. 1 PED 2014/68/EU ASME VIII, Div. 1 PED 2014/68/EU
Tube Shell Tube Shell Tube Shell Tube Shell
Process connections Flange 3/4",
600 lbs
NPT 3/4" Flange 3/4",
600 lbs
NPT 3/4" Flange 3/4",
600 lbs
Flange 3/4",
300 lbs
Flange 3/4",
600 lbs
Flange 3/4",
300 lbs
Drain / vent connection NPT 1/2" NPT 1/2" NPT 1/2" NPT 1/2"
Allowable pressure1) 65 bar
(943 PSI)
25 bar
(362 PSI)
65 bar
(943 PSI)
25 bar
(362 PSI)
65 bar
(943 PSI)
25 bar
(362 PSI)
65 bar
(943 PSI)
25 bar
(362 PSI)
Allowable temperature
cooling water side (shell side)1)
-29 °C … +150 °C
(-20 °F … +302 °F)
-29 °C … +150 °C
(-20 °F … +302 °F)
-29 °C … +150 °C
(-20 °F … +302 °F)
-29 °C … +150 °C
(-20 °F … +302 °F)
Allowable temperature
process/barrier medium side (tube side)1)
-29 °C … +260 °C
(-20 °F … +500 °F)
-29 °C … +260 °C
(-20 °F … +500 °F)
-29 °C … +260 °C
(-20 °F … +500 °F)
-29 °C … +260 °C
(-20 °F … +500 °F)
Cooling capacity (kW)2) 10 10 10 10
Metal parts 316/316L 316/316L 316/316L 316/316L


Other versions on request.

1) Standard design data, extendend pressure / temperature rating on request.
2) The cooling performance depends on the available fluids, their temperatures and flow rates. Please contact EagleBurgmann for professionally selecting the correct heat exchanger.
