13 products found

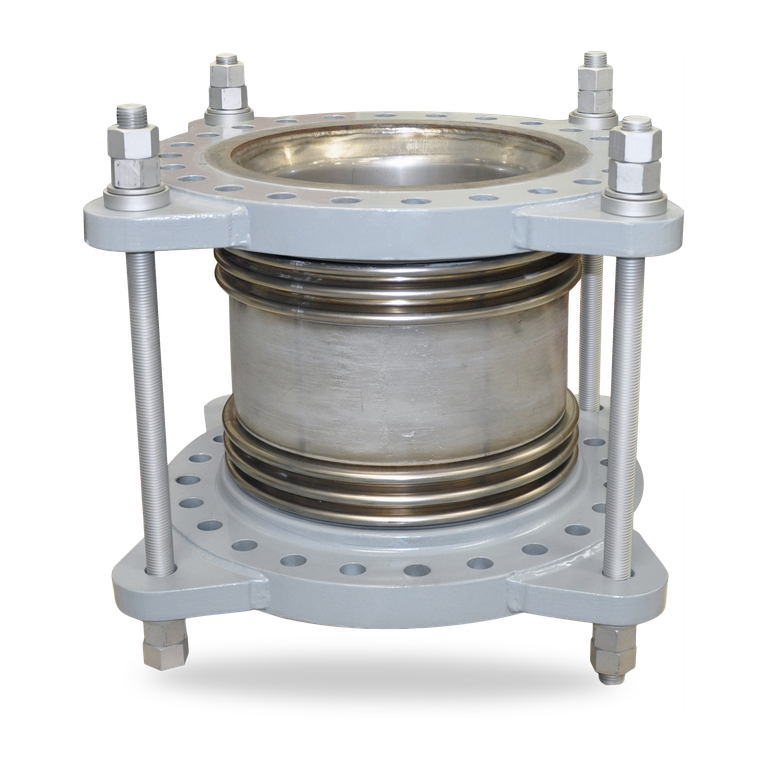

AN Type
expansion joints

  • Tied custom metal expansion joints for general pressure applications.
  • Designed for, and cover the mid temperature and pressure range for general process equipment.
  • Mainly for angular movements.
  • Tied metal expansion joints retain pressure thrust developed by internal pressure, through the use of hardware.

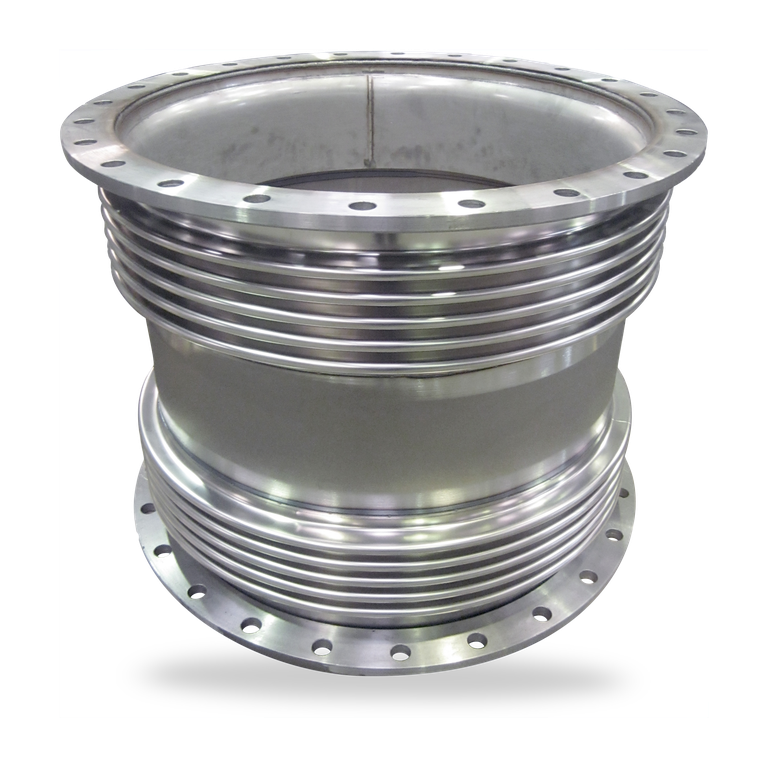

AX Type
expansion joints

  • Untied custom metal expansion joints for general pressure applications.
  • Designed to cover the mid temperature and pressure range for general process equipment.
  • Mainly intended for axial movements.
  • Multiply bellows with low spring rate and high cycle life.

CB Clamshell
metal expansion joints

  • Bellows or expansion joints split into longitudinal segments for installation without opening pipework.
  • Temporary repair solution for damaged expansion joints.
  • Can handle axial, lateral and angular movements.
  • The permissible combination and magnitude of movements depends on the application and the existing expansion joint that is to be repaired.

DH1S Danmuff
metal expansion joints

  • Untied metal expansion joints mainly for district heating applications.
  • External shroud with torsion protection, for district heating.
  • Can be installed in series.
  • Designed for large axial movements.

DX3S DanOne
metal expansion joints

  • Untied metal expansion joints mainly for district heating.
  • External sealable shroud.
  • Can be installed in series.
  • One cycle / startup type expansion joint, for ease of installation.
  • Designed for large axial movements.

EX Type
expansion joints

  • Untied metal expansion joints for general pressure applications.
  • Externally pressurized design.
  • Designed for, and cover the mid temperature and pressure range for general process equipment.
  • Intended for large axial movements.

HA Type
expansion joints

  • Elbow type pressure balanced expansion joints.
  • Pressure thrust eliminated by means of force balancing design principle.
  • Designed to apply minimum forces on connecting, load sensitive equipment.
  • Mainly for axial and lateral movements.

LA Type
expansion joints

  • Tied custom metal expansion joints for general pressure applications.
  • Designed for, and cover the mid temperature and pressure range for general process equipment.
  • Mainly for lateral movements.
  • Tied metal expansion joints retain pressure thrust developed by internal pressure, through the use of hardware.

Penetration seal
metal expansion joints

  • 100 % airtight solution to boiler penetration.
  • Permits axial and lateral movement without causing high stresses in penetration pipe and boiler wall.
  • Maintenance-free
  • Used in heat recovery steam generators (HRSGs).

TB Type
expansion joints

  • In line pressure balanced expansion joints.
  • Pressure thrust eliminated by means of force balancing design principle.
  • Designed to apply minimum forces onto connecting, load sensitive equipment.
  • Mainly for axial and lateral movements.

UM Type
expansion joints

  • Customized for flue gas applications, designed for engine exhaust systems.
  • Located in the engine exhaust system, in mainly two areas. The flue gas line between the engine and the turbo charger, and on the charger air lines.
  • Designed for, and operate at high temperatures, where vibrations are present and pressure impulses occur.

UN Type
expansion joints

  • (Tied) custom metal expansion joints for general pressure applications.
  • Designed to cover the mid temperature and pressure range for general process equipment.
  • Suited for combined and multiple types of movements.
  • Tied metal expansion joints retain pressure thrust developed by internal pressure, through the use of hardware.
  • Multiply bellows with low spring rate and high cycle life.

US Type
expansion joints

  • US type expansion joints are used in flue gas (exhaust) systems.
  • For general applications with low pressure and high temperature.
  • Designed for small vibrations and relatively large axial and lateral movements.
