Burasoft 6225/L

Request product

Burasoft 6225/L

Burasoft 6225/L
Request product

Burasoft 6225/L

Features

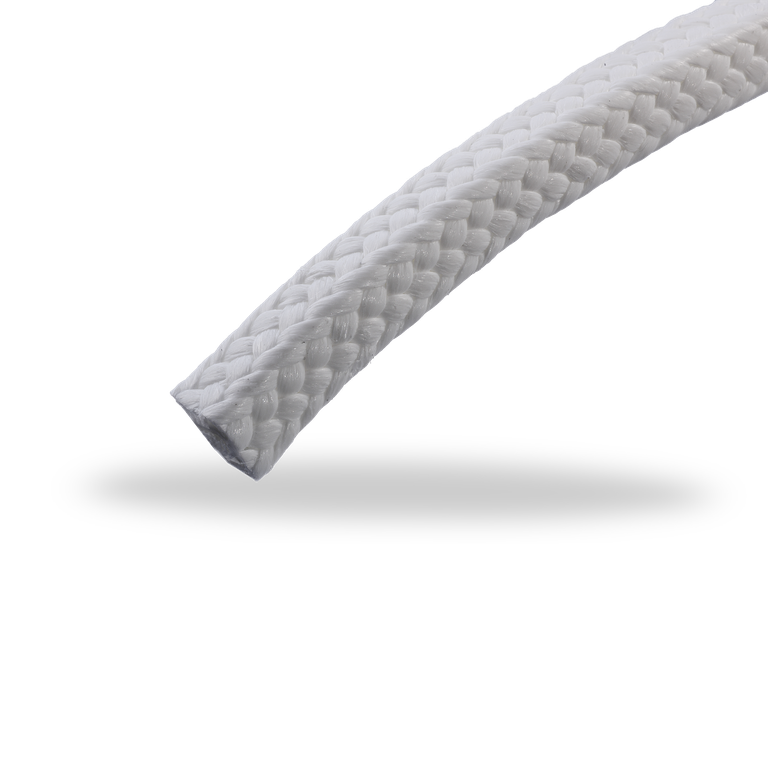

Burasoft 6225/L is a diagonally braided silicone oil-free PTFE packing with lubricant. The packing can be used universally in the chemical, pharmaceutical and food industries.

Advantages

  • Excellent emergency running properties
  • High structural strength
  • Good cross-sectional stability

Operating range

Pumps
Pressure: p = 10 bar
Sliding velocity: vg = 10 m/s
Valves
Pressure: p = 100 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -200 °C … +280 °C

Chemical resistance:
pH = 0 ... 14
Universal chemical resistance. Not suitable for use in abrasive media or in applications using hot water, hot steam or oxygen.

Standards and approvals

  • FDA

Variants

6225/LAK (braiding in AK-profile)

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg

Similar products

Araflon 6426

Araflon 6426

Araflon 6426 is a packing made from high quality, smooth, synthetic and partly pre-impregnated continuous aramid fibers (Kevlar) with multiple applications of PTFE impregnating agent and lubricant additive. The aramid fibers are diagonally braided. This is a high quality and high strength packing. It is used, in particular, in the chemical, petrochemical, waste water and paper industries.

Read more

Buraflex HT 2000/HT

Buraflex HT 2000/HT

Buraflex HT 2000/HT is a packing made from expanded graphite combined with Nomex yarn corners. The Buraflex HT is a special packing for applications with high temperatures and peripheral speeds.

Read more

Buraflon 5846

Buraflon 5846

Buraflon 5846 is a diagonally braided, silicone oil-free ramie fiber packing with a light-colored special PTFE impregnating agent based on paraffin wax and oil. This special combination will prevent product contamination. The packing is preferred for use in marine applications, the brewing and drinks industry and the pharmaceutical industry. It is a flexible, maintenance-friendly and easy to adjust packing that is gentle on shaft surfaces.

Read more

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview

Technical Datasheet L Burasoft TDB 6225

PDF download - 45.8 KB
