Thermoflon 6230
Thermoflon 6230
Thermoflon 6230
Features

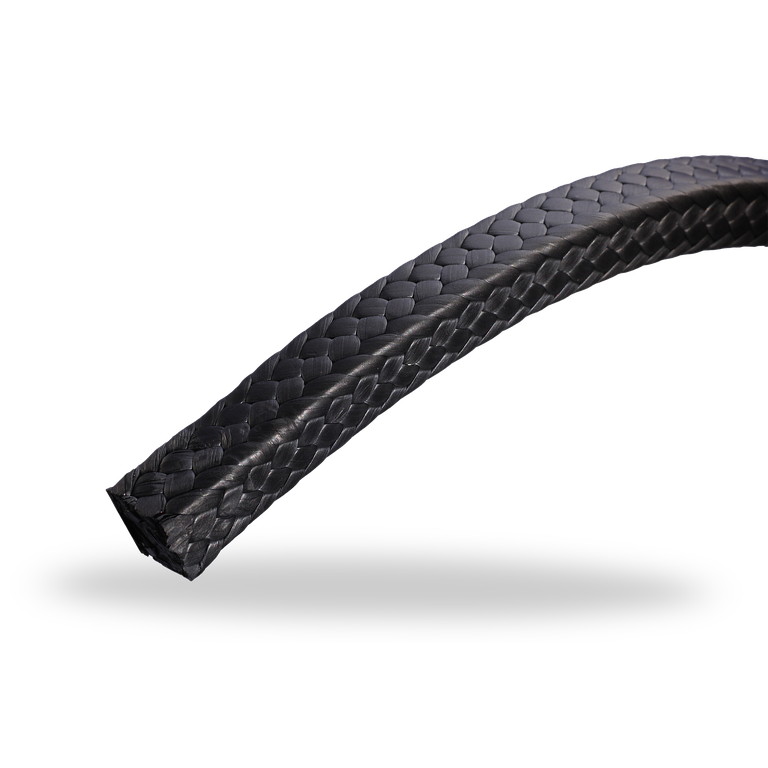

Thermoflon 6230 is a diagonally braided packing made from 100% genuine GFO (graphiteincorporated PTFE yarn). With its universal structure, the packing is used in almost every branch of industry.
Advantages
- Treats shafts gently
- High cross-sectional stability
- Highly flexible
- Outstanding functional efficiency
- Very good emergency running properties
- Very high thermal conductivity
- No embrittlement
- Does not age
- Long service life
Recommended applications
Industries
- Process industry
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Mining industry
- Building services industry
- Food and beverage industry
- Shipbuilding
- Sugar industry
- Metal production and processing
- Pumps
- Agitators
- Mixers
- Kneaders
Variants
6230/AK (braided in AK-profile)
Notes
For sealing hot water pumps, the required leakage must always emerge in liquid form in order to lubricate the packing. The compression packing will have to be cooled via a lantern ring or a jacket, gland or shaft cooling system if the heat radiation via the stuffing box housing is not sufficient.
Forms of supply
- Sold by length, blank cuts, precompressed rings with straight or slanted cut
- Box contents
up to 6,35 mm: 1 kg
7 - 10 mm: 2 kg
11 - 13 mm: 3 kg
14 - 24 mm: 5 kg
from 25 mm: 10 kg
